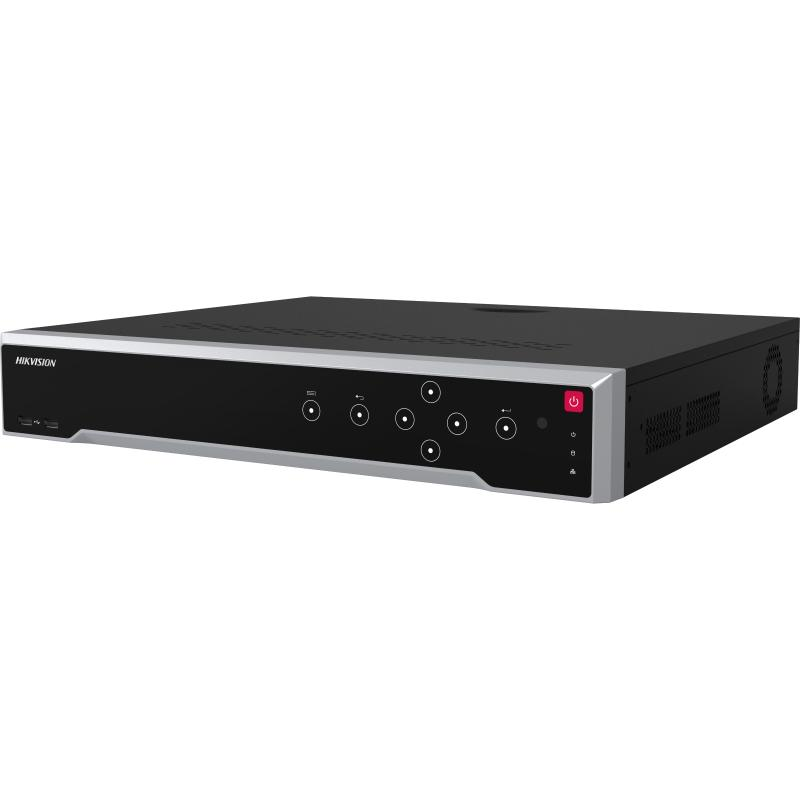

DS-7732NI-K4/16P
جهاز تسجيل شبكي , متوافق مع كاميرات هيكفيجن ، يدعم بدقة 4K ويشغل عدد 32 كاميرا ، يدعم التوصيل عبر PoE ايثرنت ذاتي التكيف حتى 100 متر ، ويدعم 4 اقراص صلبة STAT بسعة تخزينية تصل الى 10 تيرا بايت
| Our products: NVR |
| Brand: HIKVISION |
| Video Compression: H.265 Pro/H.265/H.264 |
| AcuSense: Not Support |
| Product Series: Pro - K series |
| Device type: 32-CH / 4K - 16PoE |
| IP Video Input: 32-ch |
| Incoming bandwidth: 256Mbps |
| Outgoing bandwidth: 160 Mbps |
| Video Output Mode: HDMI/VGA independent output |
| Audio Output: 1-ch/ RCA (Linear 1 KΩ) |
| Two-way audio: 1-ch-RCA (2.0 Vp-p1 k Ω) |
| Frame Rate(FBS): 1-ch@12 MP/2-ch@8 MP /4-ch@4 MP/ 8-ch@1080p (30 fps) |
| Network Interface: 2RJ45 10/100/1000M Mbps self-adaptive Ethernet interface |
| Protocol ONVIF: Not supported |
| POE Interface: 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
| Disk type: 4 SATA interface |
| USB Interface: Front panel:2×USB 2.0 Rear panel:1×USB 3.0 |
| Alarm In/Out: 16/4 |
| Power Supply: 100 to 240 VAC 50 to 60 Hz |
| storage capacity: 10TB for each disk |
| Consumption: ≤ 20W (without HDD - PoE) |
| Working Temperature: -10 °C to +55 °C |
| Working Humidity: 10% to 90% |
| Weight: 5kg (without HDD 11.0 lb) |
