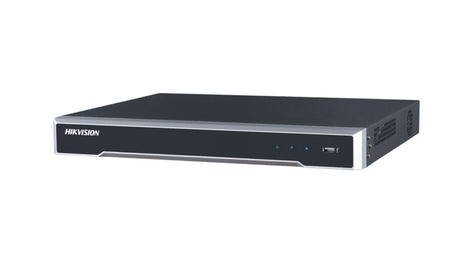

DS-7616NI-K2
جهاز تسجيل شبكي , متوافق مع كاميرات هيكفيجن ، يدعم بدقة 4K ويشغل عدد 16 كاميرا ، ويدعم عدد 2 اقراص صلبه خارجيه SATA بسعة تخزينية تصل الى 6 تيرا بايت
| Our products: NVR |
| Brand: HIKVISION |
| Video Compression: H.265 Pro/H.265/H.264 |
| AcuSense: Not Support |
| Product Series: Pro - K series |
| Device type: 16-CH / 4K |
| IP Video Input: 16-ch |
| Incoming bandwidth: 160Mbps |
| Outgoing bandwidth: 160 Mbps |
| Video Output Mode: HDMI/VGA independent output |
| Audio Output: 1-ch/ RCA (Linear 1 KΩ) |
| Two-way audio: 1-ch-RCA (2.0 Vp-p1 k Ω) |
| Frame Rate(FBS): 2-ch @ 32MP (30fps) / 10-ch @ 8MP (30fps) / 20-ch @ 4MP (30fps) |
| Network Interface: 1RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Protocol ONVIF: Not supported |
| POE Interface: unavailable |
| Disk type: 2 SATA interface |
| USB Interface: Front panel:1×USB 2.0 Rear panel:1×USB 2.0 |
| Alarm In/Out: Not found |
| Power Supply: 12 VDC 3.3A |
| storage capacity: 6TB for each disk |
| Consumption: ≤ 15W (without HDD) |
| Working Temperature: -10 °C to +55 °C |
| Working Humidity: 10% to 90% |
| Weight: 5kg (without HDD 11.0 lb) |
