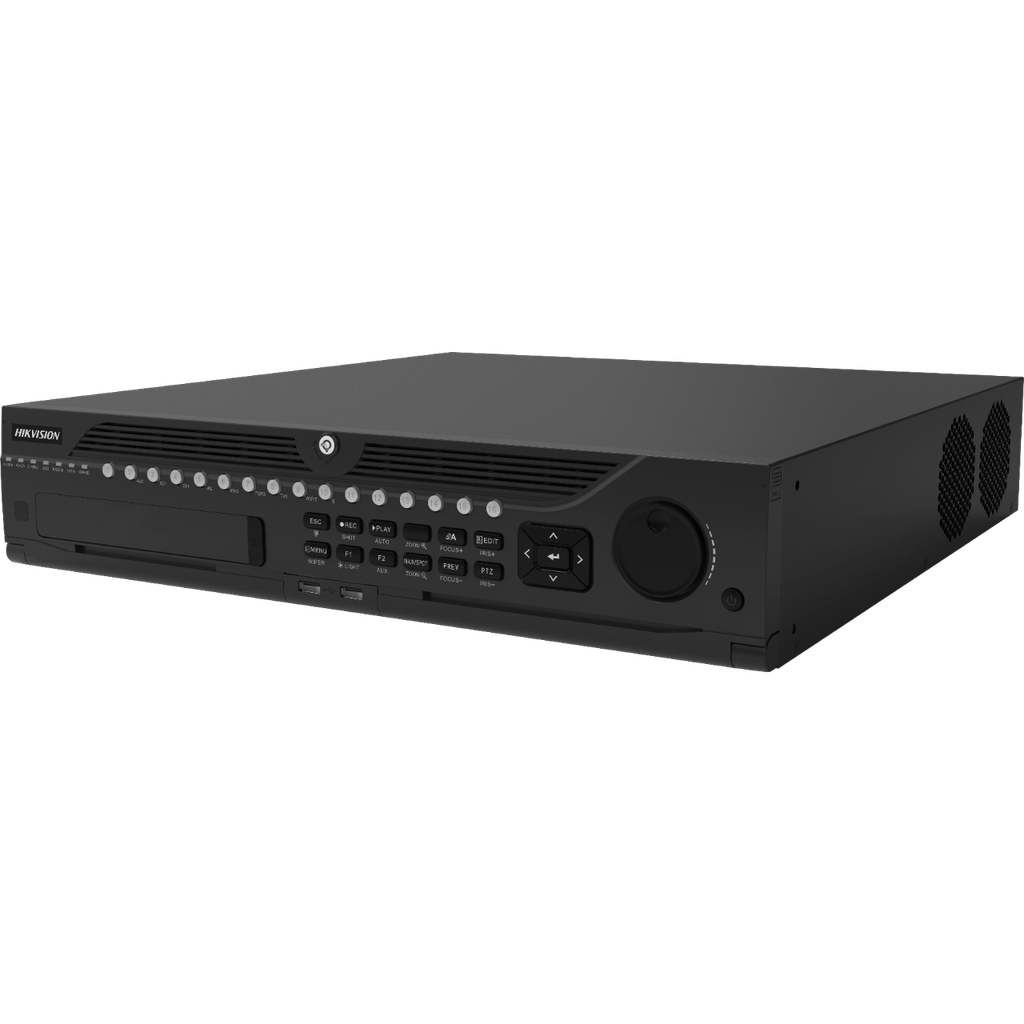

DS-9616NI-I8
جهاز تسجيل شبكي , متوافق مع كاميرات هيكفيجن ، يدعم بدقة 8K ويشغل عدد 16 كاميرا، ويدعم عدد 8 اقراص صلبه خارجيه SATA بسعة تخزينية تصل الى 10 تيرا بايت
| Our products: NVR |
| Brand: HIKVISION |
| Video Compression: H.265 Pro/H.265/H.264 |
| AcuSense: Not Support |
| Product Series: Ultra - 96 series |
| Device type: 16-CH / 4K |
| IP Video Input: 16-ch Up to 12 MP resolution |
| Incoming bandwidth: 256Mbps |
| Outgoing bandwidth: 256 Mbps |
| Video Output Mode: HDMI 1 and VGA 1 provide simultaneous video and work as the main output / HDMI 2 and VGA 2 provide simultaneous video and work as the auxiliary |
| Audio Output: 2-ch\ RCA (Linear 1 KΩ) |
| Two-way audio: 1-ch-RCA (2.0 Vp-p1 k Ω) |
| Frame Rate(FBS): 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) |
| Network Interface: 2RJ45 10/100/1000M Mbps self-adaptive Ethernet interface |
| Protocol ONVIF: Not supported |
| POE Interface: unavailable |
| Disk type: 8 SATA interface - 1eSATA |
| USB Interface: Front panel:2×USB 2.0 Rear panel:1×USB 3.0 |
| Alarm In/Out: 16/4 |
| Power Supply: 100 to 240 VAC 50 to 60 Hz |
| storage capacity: 10TB for each disk |
| Consumption: ≤ 30W (without HDD) |
| Working Temperature: -10 °C to +55 °C |
| Working Humidity: 10% to 90% |
| Weight: 10kg (22 lb) |
